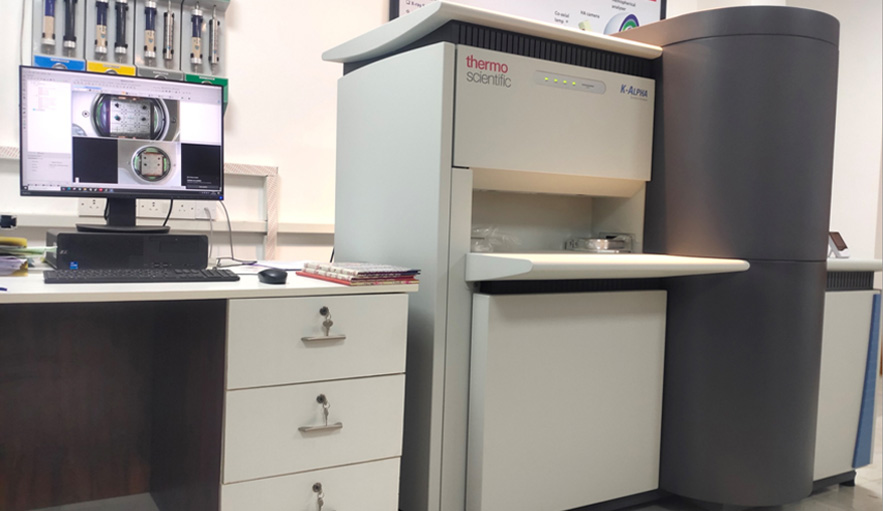

X-Ray Photoelectron Spectroscopy (XPS)
X-Ray Photoelectron Spectroscopy (XPS) also known as Electron Spectroscopy for Chemical Analysis (ESCA) is a highly surface sensitive quantitative chemical analysis technique that can be used to solve a wide range of materials problems. This facility with UV upgrade enables surface analysis, providing elemental composition as well as the chemical and electronic state of the top 10 nm of a material. With depth profiling, XPS analysis extends to compositional insight of layers.
MAKE : Thermo Fisher Scientific, USA
MODEL NUMBER : K- Alpha
Technical Specifications:
| Source | : | Aluminium (Al) K-alpha micro-focused monochromator |
| Energy Resolution | : | ≥0.5 eV (XPS), ≥0.12 eV (UPS) |
| X-ray spot size | : | 50 - 400 µm |
| Pass Energy | : | 50.0 eV for High Resolution Scan |
| Pass Energy | : | 200.0 eV for Survey Scan |
| Energy Step Size | : | 0.1 eV |
| X-ray power | : | 72 W |
| Analyzer | : | 180° double-focusing hemispherical analyzer |
| Detector | : | 128-channel detector |
Consultancy Charge Details:
| Type | Internal(Student & Staff) (Rs.) | External Educational Institution / R&D) (Rs.) | Industry(Rs.) |
| XPS- Survey and Narrow Scan (5 elements/sample) | Rs. 1150/- Rs. 250/- each for additional elements |
Rs. 2300/- Rs. 500/- each for additional elements |
Rs. 5000/- Rs. 1000/- each for additional elements |
| Elemental Mapping (5 elements/sample) | Rs. 1750/- Rs. 250/- each for additional elements |
Rs. 3500/- Rs. 500/- each for additional elements |
Rs. 7000/- Rs. 1000/- each for additional elements |
| Depth Profiling (5 elements/sample) (excluding charges for normal XPS analysis) | Rs. 750/- for each Ar ion etching. Rs. 250/- each for additional elements |
Rs. 1500/- for each Ar ion etching. Rs. 250/- each for additional elements. |
Rs. 3000/- for each Ar ion etching Rs. 250/- each for additional elements |
| VB XPS | Rs. 500 (Along with XPS: Rs. 250) |
Rs. 1000 (Along with XPS: Rs. 500) |
Rs. 1500 (Along with XPS: Rs. 750) |
| UPS (per sample) | Rs. 2500/- | Rs. 5000/- | Rs. 10000/- |
User Instuctions & Consultancy Form
Staff-Incharge:
Dr. S. Anandh Jesuraj, Assistant Professor (Research)
Dr. Gopika G, Assistant Professor (Research)
Dr. D. Balaji, Assistant Professor (Research)
Contact Details:
| Email ID | : | xpslab@sathyabama.ac.in |
| Phone No. | : | Dr. S. Anandh Jesuraj (+91- 8973533003) Dr. Gopika G (+91-9645037589) Dr. D. Balaji (+91- 9940855738) |
