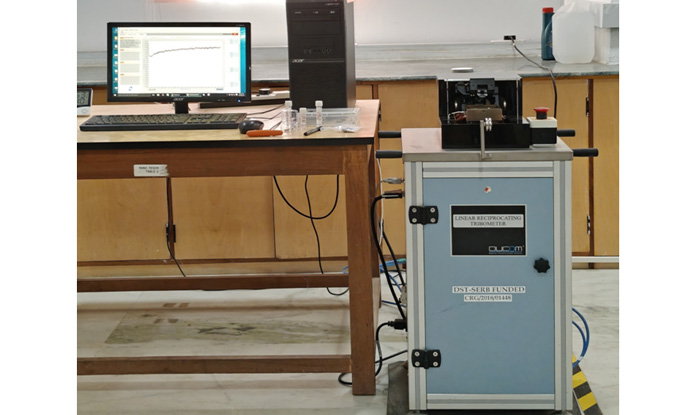

Linear Reciprocating Tribometer (LRT)
Linear Reciprocating Tribometer (LRT) is used to study the friction, wear and lubrication characteristics of bulk, thin films, coatings and liquid lubricants. Spherical ball will be sliding (reciprocating; ASTM G133) over the specimens with the applied load, sliding speed and stroke length will be varied depending on the experimental needs. The friction force will be measured using the Linear Variable Differential Transformer (LVDT) sensor, and the temperature can be controlled from RT - 400 °C.
MAKE : BRUKER
MODEL NUMBER : LUB009
Technical Specifications:
| Sample Dimensions | : | 10x10x5/3 mm; 15x15x5/3 mm; 20x20x5/3 mm; 30x30x5/3 mm |
| Ball material | : | 52100 steels; Al2O3 |
| Ball Diameter | : | 6 mm & 10 mm |
| Load Range | : | 1 - 10 N |
| Sliding Frequency | : | 1 - 30 Hz |
| Stroke Length | : | 1 - 10 mm |
| Type of Materials | : | Bulk material; Thin Films; Coatings; Oil based lubricants |
| Temperature | : | RT - 400 °C |
Consultancy Charge Details:
| Type | Internal(Student & Staff) (Rs.) | External Educational Institution / R&D) (Rs.) | Industry(Rs.) |
| Bulk material/ Thin Films/ Coatings [Room Temperature] | 400/hr | 500/hr | 1000/hr |
| Bulk material/ Thin Films/ Coatings [High Temperature] |
600/hr | 750/hr | 1500/hr |
| Lubricants | 500/hr | 650/hr | 1250/hr |
User Instuctions & Consultancy Form
Staff-Incharge:
Dr. D. Dinesh Kumar, Associate Professor (Research)
Contact Details:
| Email ID | : | ddkumar86@gmail.com |
| Phone No. | : | Dr. D. Dinesh Kumar (+91- 9976563823) |
