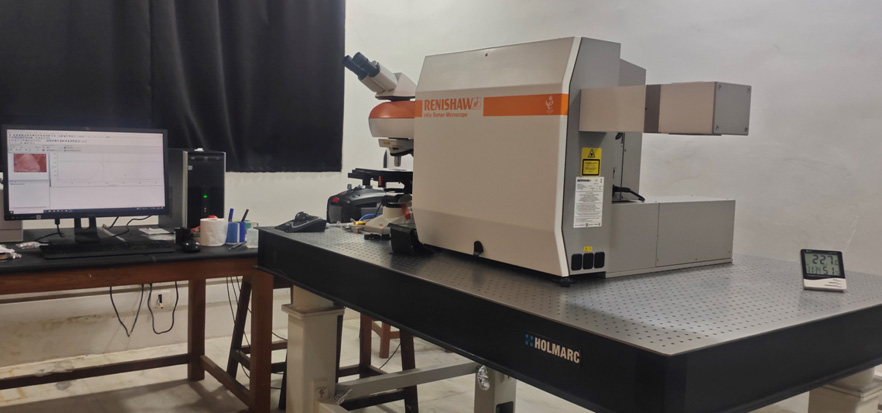

Micro Raman Spectrophotometer
Raman Spectroscopy is useful to researchers in the area of Materials science, Biotechnology, Pharmaceutical, surface science, Engineering, etc. It is a non-destructive technique that provides qualitative information about chemical structure, crystallinity, molecular bonding, defect analysis, chemical environment, etc. This technique is extensively utilized to analyse the allotropes of carbon and for the detection of microplastics in recent years.
MAKE : RENISHAW, UK
MODEL NUMBER : 2CCN98
Technical Specifications:
(a) Spectrometer:
| Laser Source | : | 532 nm & 785 nm |
| Gratings | : | 2400 l/mm & 1200 l/mm |
| Spectral Resolution | : | 0.75 cm-1 |
| Spectral Frequency | : | 50 cm-1 to 3500 cm-1 |
| Detector | : | CCD Array NIR detector (Peltier Cooled -70 °C) |
(b) Microscope:
- Research Grade Leica Microscope: Confocal Measurements with 2mm depth resolution
- Four different Objectives (5X, 20X, 50X & 100X)
- Encoded XYZ Mapping Stage & Depth Profiling: 8 nm Steps
- Spatial Resolution: Axial <1mm and Lateral -0.5 mm
Consultancy Charge Details:
| Type | Internal(Student & Staff) (Rs.) | External Educational Institution / R&D) (Rs.) | Industry(Rs.) |
| Spectral Acquisition | 500 | 700 | 1400 |
| Spectrum with mapping/imaging | 750 | 1000 | 2000 |
| HT Raman Spectrum (RT - 500 °C) | 1500 | 2000 | 4000 |
| HT Raman Spectrum (RT - 1000 °C) | 2000 | 2500 | 5000 |
User Instuctions & Consultancy Form
Staff-Incharge:
: Dr. P. Vengatesh, Assistant Professor (Research)
Dr. T. Dharini, Assistant Professor (Research)
Contact Details:
| Email ID | : | vengatesh.irc@sathyabama.ac.in / ramansathyabama@gmail.com |
| Phone No. | : | Dr. P. Vengatesh (+91-9965624377 / 9443109774); Dr. T. Dharini (+91- 9789110293) |
