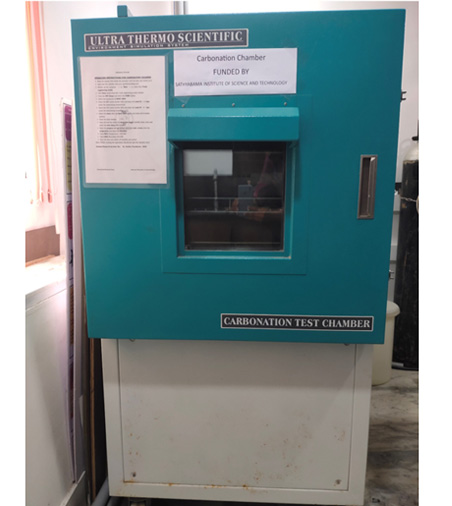

Carbonation Test Chamber
The UT/HTC 220- CO2 carbonation test chamber is sophisticated piece of equipment designed for conducting controlled carbonation tests. This chamber is built for reliable and economical carbonation testing, emphasizing high standards and quality. the primary application is for carbonation testing, environmental test chambers with CO2 control can also be used for Concrete and Material Testing, Corrosion Studies, Climate Simulation, Plant Growth Studies.
MAKE : Ultra Thermo Scientific, Chennai
MODEL NUMBER : UT/HTC 220- CO2
Technical Specifications:
| Temperature Range | : | +20°C to +60°C |
| Temperature Measurement Accuracy | : | +/- 0.1°C |
| Temperature Control Accuracy | : | within +/- 1°C after stabilization |
| Humidity Range (RH) | : | 40% to 95% RH, ± 2% in standard temp range, limited to a dew point of 4°C |
| CO2 Range (%) | : | 0-10% (GM221 Sensor with automatic baseline correction will be used) |
| Working Ambient | : | Peak specification confines to the working ambient of 35°C, 90% RH |
| Insulation | : | Non-flammable 96Kg/m3 density Rock wool 100mm thick |
Consultancy Charge Details:
| Type | Internal(Student & Staff) (Rs.) | External Educational Institution / R&D) (Rs.) | Industry(Rs.) |
| Charges per Sample | 1500 | 2000 | 2500 |
User Instuctions & Consultancy Form
Staff-Incharge:
Dr. Sudha Uthaman, Assistant Professor (Research)
Contact Details:
| Email ID | : | sudha.irc@sathyabama.ac.in |
| Phone No. | : | Dr. Sudha Uthaman (+91- 9566523176) |
